True Flatbed UV Printing Machine – VERVE LED for Rigid Surfaces

Verve LEDX

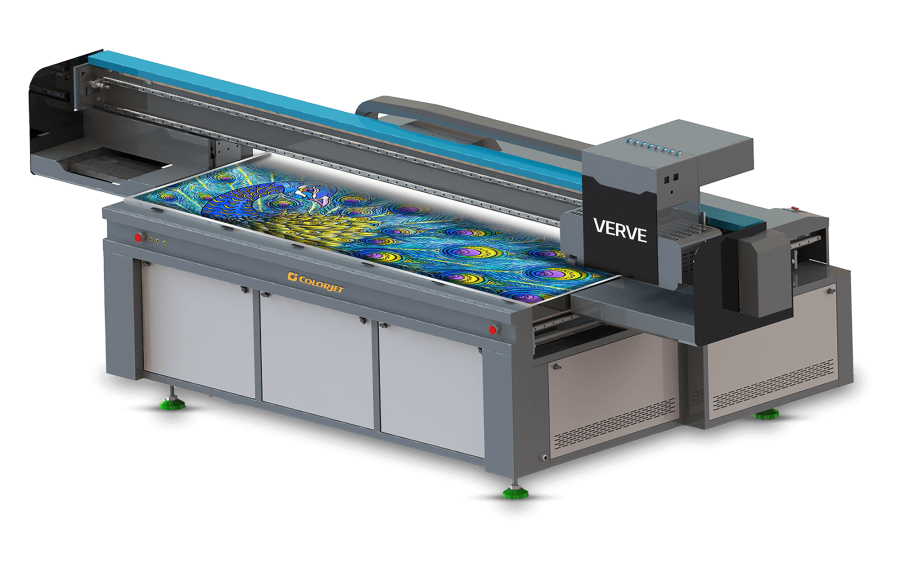

True Flatbed UV Printer – VERVE LEDX for Rigid Surfaces

VERVE LEDX is a cutting-edge True Flatbed LED UV Printer that revolutionizes the way you print on rigid surfaces. Designed for maximum productivity and precision, it allows direct, high-quality printing on a variety of materials including wood, glass, leather, ceramic tiles, acrylic, and more. With a blazing-fast speed of up to 61 m²/hr, this UV digital printing machine opens up new business opportunities in signage, décor, packaging, and industrial printing. Whether you're aiming for sharp details or rich color vibrancy, VERVE LEDX delivers consistent, durable, and professional results on every surface.

** VIEW AND DOWNLOAD THE BROCHURE **

Get Pricing Download Brochure

VERVE LED is a cutting-edge True Flatbed LED UV Printer that revolutionizes the way you print on rigid surfaces. Designed for maximum productivity and precision, it allows direct, high-quality printing on a variety of materials including wood, glass, leather, ceramic tiles, acrylic, and more. With a blazing-fast speed of up to 68 m²/hr, this UV digital printing machine opens up new business opportunities in signage, décor, packaging, and industrial printing. Whether you're aiming for sharp details or rich color vibrancy, VERVE LED delivers consistent, durable, and professional results on every surface.

Anti-Static Ionizer
ROHS Complaints Inks
4 Zone Vacuum System
Anti-Crash System
Dual Media Height Detection System
100 Mm Media Thickness
Dual Negative Pressure System

Models			KX2513M
Verve LED 2513X
Print Technology			Drop-on-demand, piezo electric inkjet
No. of Print Heads			4 to 8(6 PL)
Media	Size		2.55 m x 1.35 m
	Thickness		Maximum 100mm
	Handling		Suction
Printing size			2.5 m x 1.3 m
Curing System			Dual UV LED Lamps
Ink	Type		UV LED Curable Ink
	System		Bulk Ink Refillable System
	Colors		CMYK + W + V
Printing Resolution (dots per inch)			1440 DPI
Distance Accuracy			Error of less than ± 0.3 % of distance travelled, or ± 0.3 mm, whichever is greater
Connectivity / Interface			USB 3.0
Power Requirments			AC 220 V, 30A, 50/60 Hz
Dimensions (Printer Only) (LXWXH)			4660 x 2180 x 1480 mm
Dimensions (With Packing) (LXWXH)			4830 x 2280 x 1840 mm
RIP Software			Onyx (ColorJet Edition)
Weight(Net Weight / Gross Weight) Kgs			1450 / 1650
Environmental	Power ON		Temperature 18 to 28o C, Humidity 20 to 60%RH (Non-condensing)
Environmental	Power OFF		Temperature 5 to 40o C, Humidity 20 to 80%RH (Non-condensing)
			Print Speed (In Sq. Meter / Hrs)
			KM 1024A
Modes	Print DPI	Passes	4 Head	8 Head
			1 Row	2 Row
Mode 1	540 x 1440	4	34	61
Mode 2	540 x 1080	6	23	41
Mode 3	540 x 1440	8	17	30
