Polo XL

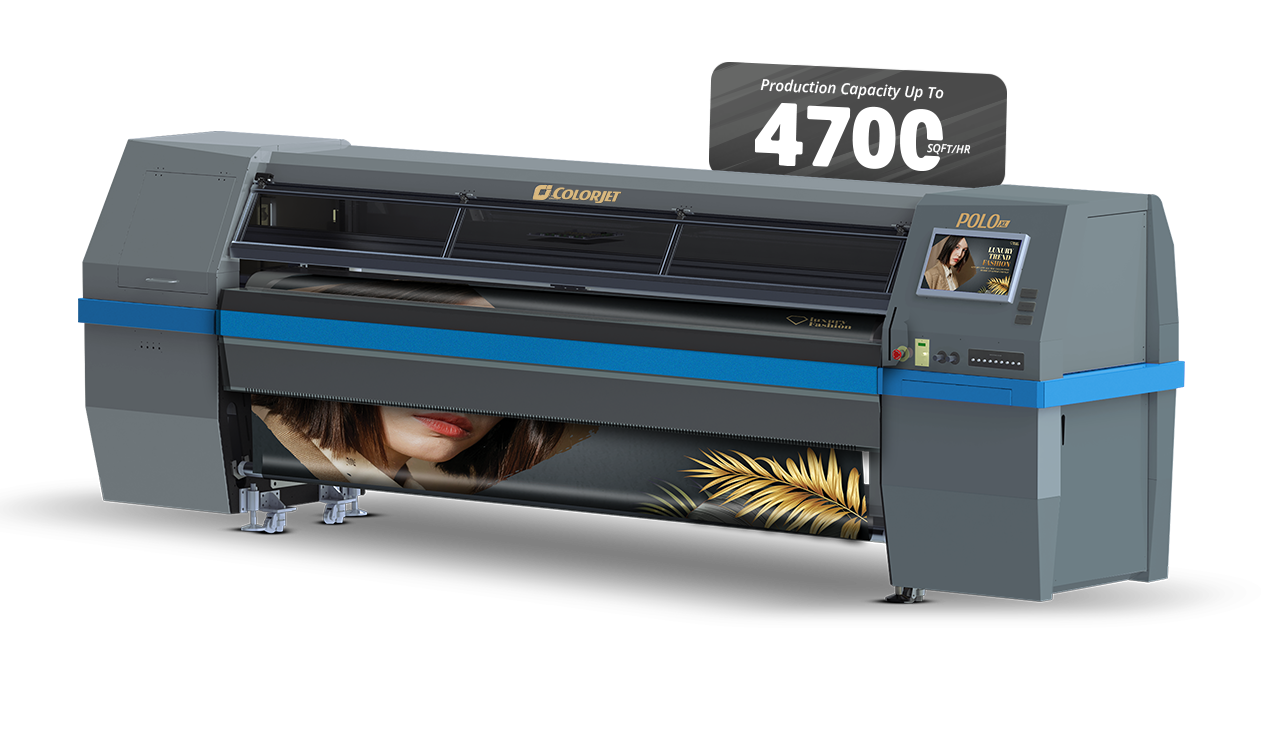

Polo XL – High Speed Solvent Printing Machine for Industrial-Grade Output

Polo XL is a high-performance industrial solvent printer designed for large-scale production with uncompromised quality. Built on a robust, heavy-duty structure, this High Speed Solvent Printing Machine is powered by advanced independent drive technology that enables each nozzle to operate individually—delivering exceptional speed and precision.

** VIEW AND DOWNLOAD THE BROCHURE **

Get Pricing Download Brochure

Capable of printing at speeds up to 4715 sqft/hr, Polo XL meets the demands of high-volume production environments such as banner printing, hoarding, backdrop, and flex printing. It offers a 3.2-meter roll-to-roll printing width, making it ideal for both indoor signage and outdoor signage applications.

Equipped with an IR-based evaporative drying system, the Polo XL ensures rapid ink drying for seamless output, while its industrial-grade jetting assembly ensures consistent accuracy at high speeds.

Whether you're printing banners, flex materials, backdrops, or large signage for commercial use, Polo XL stands out as the most reliable and cost-effective solution in the flex printing machine segment.

ColorJet’s Polo XL Series is a marvel of engineering from the special R&D team of ColorJet, which usually works on high-end machines; this new gem from the ColorJet’s house of innovation revolutionizes the industries standards of revenue generation for ou
Polo XL Series is specially designed to handle various media, from low GSM to thick paper-backed self-adhesive vinyl.
Zero maintenance the new design objective language version 7.0 is utilized fully in this XL series of Polo; spare parts and consumables are fully utilized under this new manufacturing & design setup.
This high-speed printer not only handles a variety of difficult media with charm but also prints them like no other printer in the segment, Crystal Sharp Images printing at such high speed is the new barrier broken by the R&D of the ColorJet.

Models				GB4424	GB8424	GB4412	GB8412
Polo XL
Printing Technology				Drop-on-demand, Piezo electric inkjet
No. of Print Heads				4 Head	8 Head	4 Head	8 Head
Print Heads				Greyscale Industrial Grade Jetting Assemblies
Media			Width	3300 mm
			Thickness	Maximum 3.0 mm with liner
			Roll Outer Diameter	Maximum 352mm
			Roll Weight	Maximum 150 kgs
			Core Diameter	76.2mm, 50.8mm
			Types	SAV, PAV Banner, Backlite Film, Window Film, Fabric (Solvent Base)
Printing Width				Maximum 3200mm
Inks			Types	Solvent based pigment inks
Inks			Color	4 Colors
Printing Resolution (dots per inch)				Maximum up to 1440 dpi
Distance Accuracy				Error of less than ±0.3 % of distance travelled, or ±0.3 mm, whichever is greater
Media Heating System				Pre Heater and post-heater, setting range for the preset temprature: 30 to 60℃. Dryer setting range for the preset temperature : 30 to 60℃
Connectivity				High speed USB
Power Requirements				AC 220V , 40A(±10%),50Hz
Dimensions ( Printer only)				4960mm x 950mm x 1580mm (LxWxH)
RIP software				Onyx (Colorjet Edition)
Weight (approx. with stand)				1500 Kgs
Environmental		Power ON		Temperature: 18 to 28℃ Humidity: 35 to 80%RH (non-condensing)
Environmental		Power OFF		Temperature: 5 to 40℃ Humidity: 20 to 80%RH (non-condensing)
				KM1024i		KM512i
				GB4424	GB8424	GB4412	GB8412
Modes	Print DPI	Passes		Speed (In Sq. mtr/hr)
Mode 1	360x360	1		2830	4715	-	-
Mode 2	360x720	2		1636	2744	-	-
Mode 3	360x1080	3		1162	1937	-	-
Mode 4	360x1440	4		904	1506	-	-
Mode 5	360x1080	6		645	1076	-	-
Mode 6	360x1440	8		516	861	-	-
Mode 1	360x360	2		-	-	1614	2818
Mode 2	360x540	3		-	-	1093	2000
Mode 3	360x720	4		-	-	806	1476
Mode 4	720x720	4		-	-	521	930
Mode 5	720x1080	6		-	-	327	640
Mode 6	720x1440	8		-	-	249	490
