SoniQ Duo Banner Printing Machine – High-Speed 3.2m Solvent Printer

SoniQ Duo

ELEVATE YOUR SIGNAGE PRINTING EXPERIENCE WITH THE ULTRA-MODERN SONIQ DUO

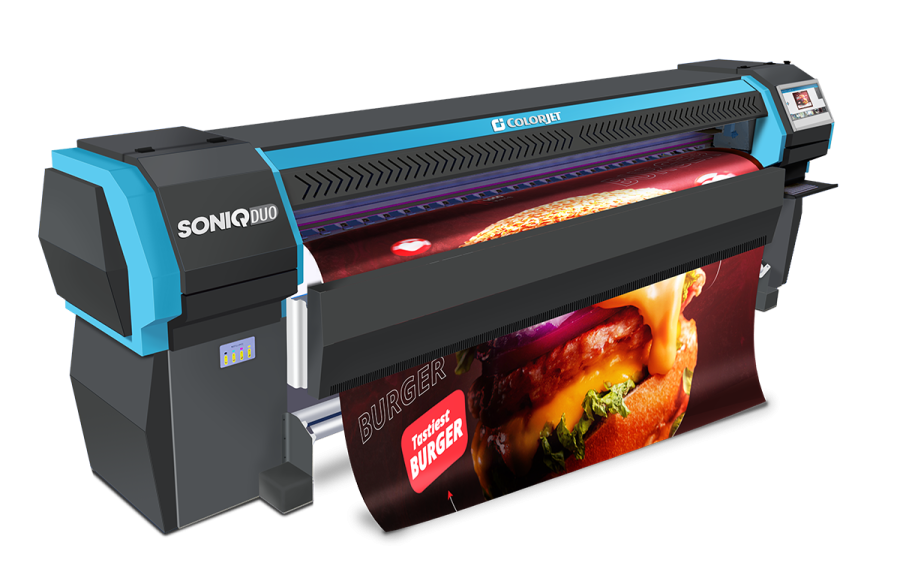

Meet the SoniQ Duo — a cutting-edge 3.2-meter solvent printer engineered to transform your indoor and outdoor signage production. Powered by 8 high-speed Konica Minolta printheads, it delivers superior print clarity at a blazing-fast speed of 2217 sqft/hr, setting a new industry standard in both performance and scalability.

Whether you're printing vibrant outdoor banners or detailed indoor vinyl graphics, the SoniQ Duo ensures unmatched quality, speed, and upgradability—future-proofing your print business with next-gen technology.

** VIEW AND DOWNLOAD THE BROCHURE **

Get Pricing Download Brochure

ELEVATE YOUR SIGNAGE PRINTING EXPERIENCE WITH THE ULTRA-MODERN SONIQ DUO

FGP (FOREFRONT GANTRY PRECISION) TECHNOLOGY

SoniQ Duo comes with unmatched FGP technology, which ensures extremely low deviation between jet-to-bed distance < 0.1mm over the entire printing span and maintains consistent print quality.

DGE EXCELLENCE TECHNOLOGY

Enhance printing Precision on the Border of the Media and helps in the smooth changeover of carriage direction, leading to less jerk and lesser wear and tear.

DIGITAL VISCOSITY OPTIMIZATION

Optimized with digital observation of the Ink viscosity curve, which helps in maintaining a stable waveform of jetting and ensures constant print quality.

SoniQ Duo
Model			SB4412		SB8412
Printing Technology			Drop-on-demand, Piezo electric inkjet
Print Heads			Industrial Grdae Jetting Assemblies
No. of Print Heads			4		8
Media		Width	3300 mm (129 in.)
		Thickness	Maximum 3.0 mm (120 mil )with liner (flexible)
		Roll Outer Diameter	Maximum 300mm (12inch), 50.8 (2 in)
		Roll Weight	Maximum 90 kgs
		Core Diameter	76.2mm (3 inch)
		Types	SAV, PAV Banner, Backlite Film, Window Film, Fabric (Solvent Base)
Printing Width			Maximum 3200mm (126 inch.)
Inks		Types	Solvent/Mild Solvent inks
		Color	4 Colors (CMYK)
Printing Resolution (dots per inch)			Maximum up to 1440 dpi
Distance Accuracy			Error of less than ±0.3 % of distance travelled, or ±0.3 mm, whichever is greater
Media Heating System			Pre-heater and post-heater, setting range for the preset temprature: 30 to 60℃. Dryer setting range for the preset temperature : 30 to 60℃
Connectivity			High speed USB
Power Requirements (Peak)			AC 220 V ±10%, 20 A, 50/60 Hz
Dimensions ( Printer only)			4700mm X 1000mm X 1450mm(WxDxH)
RIP Software			FlexPrint
Weight			Net Weight : 550 KG, Gross Weight : 742 KG
Environmental	Power ON		Temperature: 18 to 28℃ Humidity: 20 to 40%RH (non-condensing)
	Power OFF		Temperature: 5 to 40℃ Humidity: 20 to 80%RH (non-condensing)
Speed (In Sq. Meter/Hrs)		Print DPI	Passes	Sq Mtrs/Hr	Sq Feet/Hr
Mode 1		360x360	2	1232	2217
Mode 2		360x540	3	830	1496
Mode 3		360x720	4	664	1205
Mode 4		720x720	4	348	635
Mode 5		720x1080	6	232	420
Mode 6		720x1440	8	177	322

Best Flex Printing Machine

SoniQ Duo

ELEVATE YOUR SIGNAGE PRINTING EXPERIENCE WITH THE ULTRA-MODERN SONIQ DUO

ELEVATE YOUR SIGNAGE PRINTING EXPERIENCE WITH THE ULTRA-MODERN SONIQ DUO

FGP (FOREFRONT GANTRY PRECISION) TECHNOLOGY

DGE EXCELLENCE TECHNOLOGY

DIGITAL VISCOSITY OPTIMIZATION
